FusionTrack — Multi-Sensor UAV Tracking

What this project is

The core challenge, explained without jargon.

The problem: sensors lie

Radar reports where something might be — but with noise, missed detections, and dozens of phantom signals (called clutter) every second. Camera gives a cleaner picture but goes dark the moment anything blocks its view. Neither sensor alone is reliable enough to stake a tracking decision on.

The solution: weighted combination

Instead of trusting one sensor, the system maintains a probability distribution — a best guess of where each drone is, plus a measure of how confident that guess is. Every new sensor reading shifts the distribution. The less noisy the reading, the more it shifts things. This is the Kalman filter idea, dating to Apollo-era navigation.

The hard part: crossing paths

When two drones fly close together, the system receives signals from both but doesn't know which signal came from which drone. Assign them wrong once and both tracks are corrupted. FusionTrack uses an optimization algorithm (Hungarian method) to find the globally best assignment — not just the closest match — avoiding identity swaps entirely.

How it works

Each timestep, the tracker runs five steps — from prediction through lifecycle management.

Plain English

Every frame: predict where each drone probably moved based on its last known velocity → check whether each incoming signal is plausibly from a known drone or random noise → match signals to drones optimally (one signal per drone, one drone per signal) → update each drone's estimated position using the matched signal → manage new arrivals and drones that have gone quiet.

Predict

Where should each drone be now?

CV model, F·P·Fᵀ + Q

Gate

Is this signal close enough to be real?

Mahalanobis d² < χ²₉₉

Assign

Which signal belongs to which drone?

Hungarian O(n³)

Update

Correct the position estimate

EKF polar h(x)=[r,θ]

Manage

Handle new targets and lost ones

Birth / confirm / delete

📡

Fusing radar and camera

Radar reports distance and angle from the sensor. Camera reports pixel coordinates. These are measured in completely different units, with different noise characteristics. The filter converts both into a single best-estimate position — weighting each sensor by how trustworthy it currently is.

Technical: native polar measurement model h(x) = [√(x²+y²), atan2(y,x)] with analytic 2×4 Jacobian. Angle-normalised innovation prevents ±π wraparound. Camera uses a linear H after pixel→world scaling.

🎯

Filtering out false alarms

Radar generates phantom signals constantly — birds, reflections, electrical noise. Before any matching happens, each incoming signal is tested: is it close enough to a known drone's predicted position, given how uncertain that prediction is? Signals that fail this test are discarded before they can corrupt any tracks.

Technical: Mahalanobis distance² in polar measurement space tested against χ²(2 DOF, 99%) gate before Hungarian assignment. Infeasible pairs receive sentinel cost 10⁹.

🔀

Solving the assignment problem

When multiple drones are visible simultaneously, each sensor signal must be claimed by exactly one drone. A naïve approach — assign each signal to its nearest drone in sequence — can cascade errors when targets are close. Instead, the system finds the globally optimal assignment: minimize the total cost across all pairings at once.

Technical: scipy.optimize.linear_sum_assignment (Jonker-Volgenant, O(n³)). Order-independent global optimum vs. greedy nearest-neighbour.

🛤️

Managing track confidence

A single radar blip shouldn't be enough to declare a drone exists — it's probably clutter. A drone that stops producing signals for several frames probably left the area. The tracker requires two consecutive detections before confirming a track, and deletes it after three missed frames. This keeps the track list clean without human supervision.

Technical: TENTATIVE → CONFIRMED (hits ≥ 2) → DELETED (misses ≥ 3). Stale tentative tracks pruned after 3 frames.

Two filter variants

The simpler version converts radar readings to x/y coordinates first, then filters. The advanced version works directly in radar's native units — more accurate at long range where the conversion introduces distortion.

Variant	Radar handling	Accuracy	Best for
`KFTracker` — linear	Convert distance/angle → x/y first, then filter	Fixed error budget approx	Short range, quick prototype
`EKFTracker` — extended	Filter directly in distance/angle space; no conversion	Physically derived error model exact	Long range — conversion error grows with distance

Results

Simulated scenario: 3 drones flying straight-line paths that converge, with radar clutter generated randomly every frame.

Bottom line

When two drones flew within 9 meters of each other — so close each was inside the other's detection zone — the system correctly tracked both without ever swapping their identities. Position estimates stayed within 2.57 meters of true position on average, which matches what you'd expect given the radar's physical noise level at that range.

Tracking performance

Identity swaps at crossing0 = never confused which drone was which 0

Drones correctly trackedall 3 confirmed from start to finish 3 / 3

Average position errorlong-lived confirmed tracks 2.57 m

Per-drone erroreach target independently 2.51 / 2.56 / 2.62 m

Sensor noise (simulation inputs)

Radar range noisehow far off distance readings are, 1σ 3 m

Radar angle noisehow far off bearing readings are, 1σ 0.5°

Expected lateral error at 270 mangle noise × range = cross-range blur ≈ 2.3 m

Camera noisepixel jitter converted to world metres 8 px ≈ 4 m

Run it yourself

# Install
python -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt

# Single-drone EKF fusion demo (plots trajectory + error over time)
python -m src.fusion

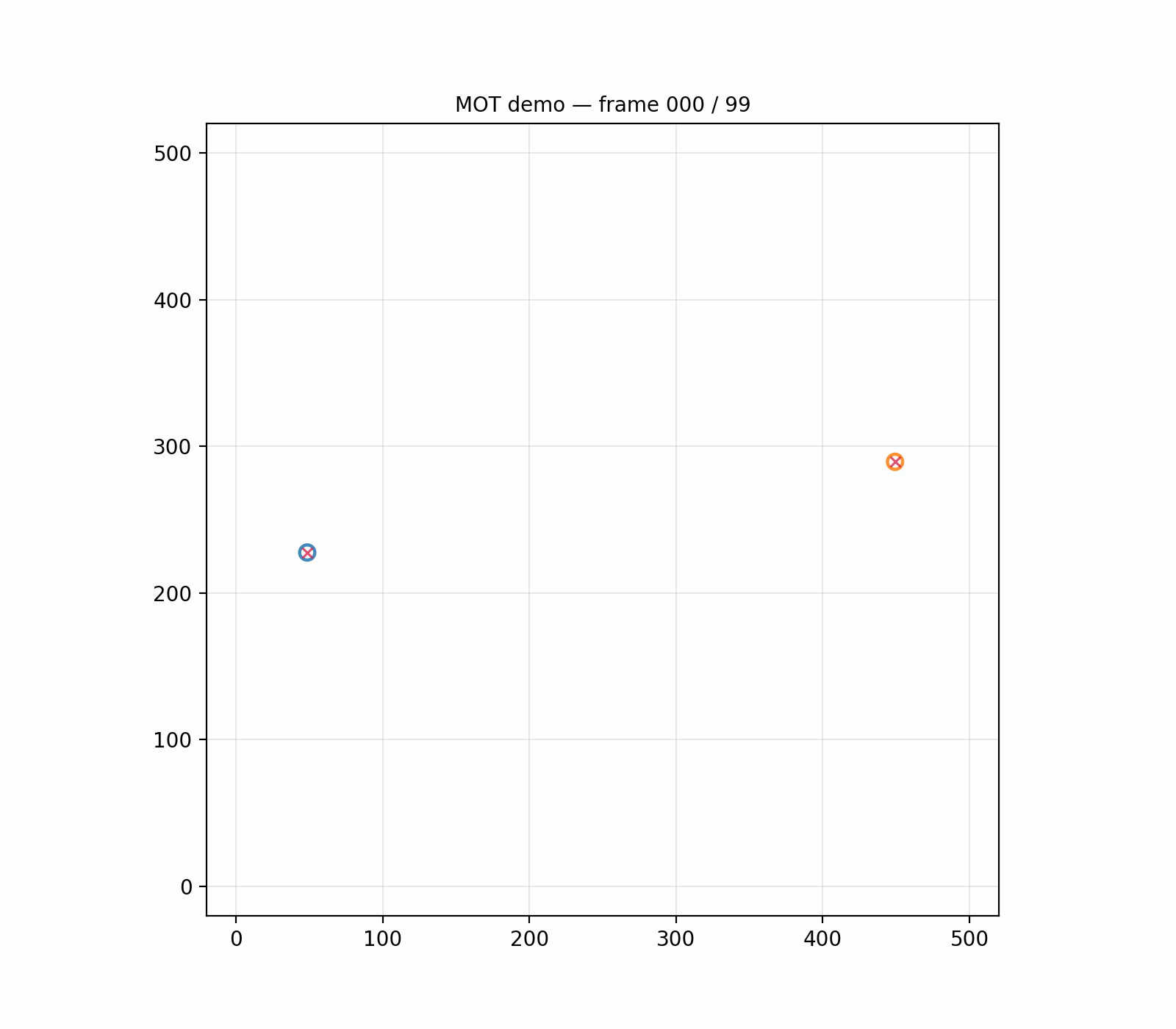

# Multi-drone tracker — prints metrics, shows plot, saves mot_demo.gif
python -m src.mot

# 29 automated tests
pytest tests/ -q


Built for deployment

Beyond the prototype: a real-time C++ core, proven to match the Python reference, with consistency checks and continuous integration.

Plain English

Everything above is the research prototype, written in Python for fast iteration and clear plots. Real trackers ship in C++, so the single-target filter math is reimplemented as a dependency-free, allocation-free C++ core — the version you'd actually run on hardware — and automatically checked to produce the same numbers as the Python version to about 14 decimal places. The multi-object logic (matching signals to drones) stays in Python.

⚙️

Dependency-free C++17 core

The Kalman/EKF filter is reimplemented with fixed-size, heap-free math — no external libraries, no dynamic allocation. That's the property a real-time payload needs: deterministic timing with no memory-management jitter.

Technical: compile-time-sized matrices (std::array), Joseph-form covariance update, and a closed-form 2×2 inverse (the only inversion a Kalman update needs). Single-target KF/EKF; MOT stays in Python.

🔬

Verified equivalent to Python

The C++ core is exposed back to Python and run through the exact same scenario as the reference filter. The two agree to machine precision, so the C++ version is provably the same filter — not a re-approximation that might drift.

Technical: pybind11 bindings; cross-validation harness reports a max state difference of 5.7 × 10⁻¹⁴ over 60 frames of camera + polar-radar updates.

📐

Consistency-checked (NEES)

Being close on average isn't enough — the filter also has to be honest about how confident it is. A NEES check compares the reported uncertainty against ground truth every frame, catching over-confidence that a plain error metric would miss.

Technical: position NEES (2 DOF) vs. a 95% χ² interval. It flagged the constant-velocity model as optimistic on the maneuvering path — motivating a coordinated-turn / IMM model.

✅

Continuous integration

Every push runs the full verification on GitHub — Python tests, C++ tests, the equivalence check, and a headless demo — so a regression can't slip in unnoticed. CI already earned its keep by catching a Linux-only build bug.

Technical: GitHub Actions matrix (Python 3.9/3.11 pytest, ctest, cross-validation, demo smoke test). Caught a Linux -fPIC link error that didn't reproduce on macOS.

Build & run the C++ core

# Build the dependency-free core and run the C++ unit tests
cmake -S cpp -B cpp/build && cmake --build cpp/build -j
ctest --test-dir cpp/build --output-on-failure

# Optional: build the Python bindings, then run the same demo on the C++ core
pip install pybind11
python -m src.fusion --backend cpp
